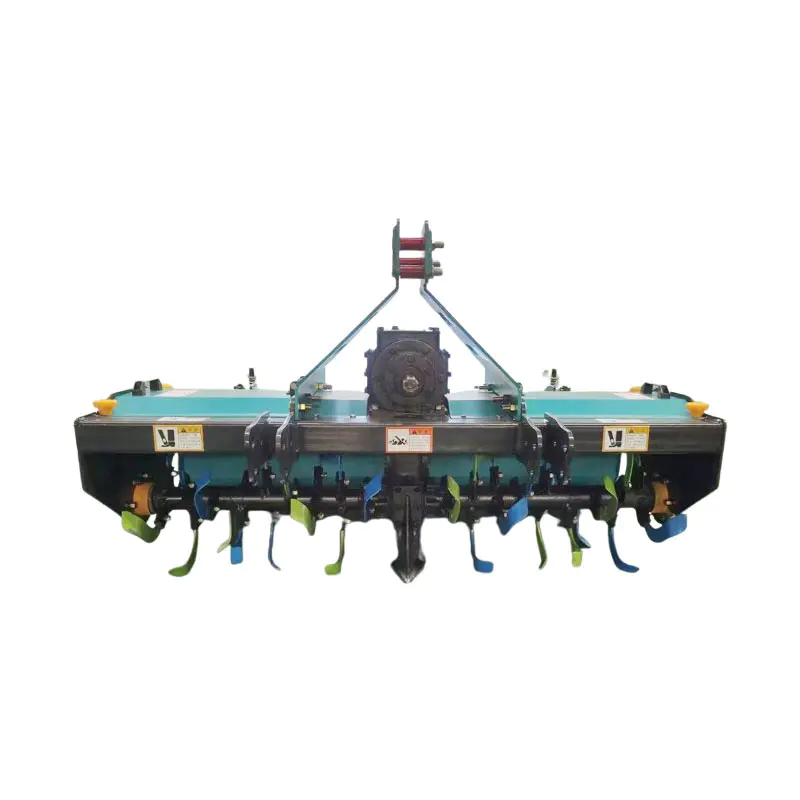

Our Rotary tiller is an efficient and durable agricultural machine designed for modern farming. The advanced blade rotation technology can easily break up the soil, mix fertilizer, achieve deep tillage and surface leveling, and significantly improve soil permeability and crop root development.
Product Parameters
| Rotary Tiller | ||||
| Project | Unit | Design value | ||
| Model name | / | 1GKN-150 Rotary Tiller | 1GKN-180 Rotary Tiller | 1GKN-230 Rotary Tiller |
| Structural style | / | Framework type | ||
| Overall dimensions of the machine (length x width x height) | mm | 850×1650×1000 | 950×2100×1080 | 1050×2590×1150 |
| Range of homework speed | m/s | 0.5～1.1 | 0.5～1.1 | 0.5～1.1 |
| Working breadth | cm | 150 | 180 | 230 |
| Deep plowing | cm | ≥12 | ||
| Knife shaft type | / | Single shaft type | ||
| Knife shaft connection type | / | Spline type | ||
| Drive system | / | Intermediate transmission | ||
| Type of shipping | / | Ordinary type | ||
| Number of gears in the gearbox (variable speed rotary tiller) | pcs | / | ||
| Design speed of knife roller | r/min | 291/387/409 | 223/297/314 | 223/297/314 |
| Maximum turning radius of the knife roller | mm | 225 | 245 | 245 |
| Total number of blades installed on the knife roller | pcs | 36 | 52 | 68 |
| Rotary tiller model | / | IT225 | IT245 | IT245 |
| Type of depth limiting device | / | Limited depth board | ||
| Suppression type | / | Pallet | ||
| Calibration power range of supporting tractor | kW | 29.5～51.5 | 44.1～73.5 | 73.5～132.5 |
| Power output shaft speed | r/min | 540/720/760 | ||
